Well Service Pumps SPM™ EXL Frac Pump

Key Specs

Horse Power: 2,500; 2,500

Rod Load: 238,000 lb; 107,954.984 kg

Weight: 17,385 lb; 7,886 kg

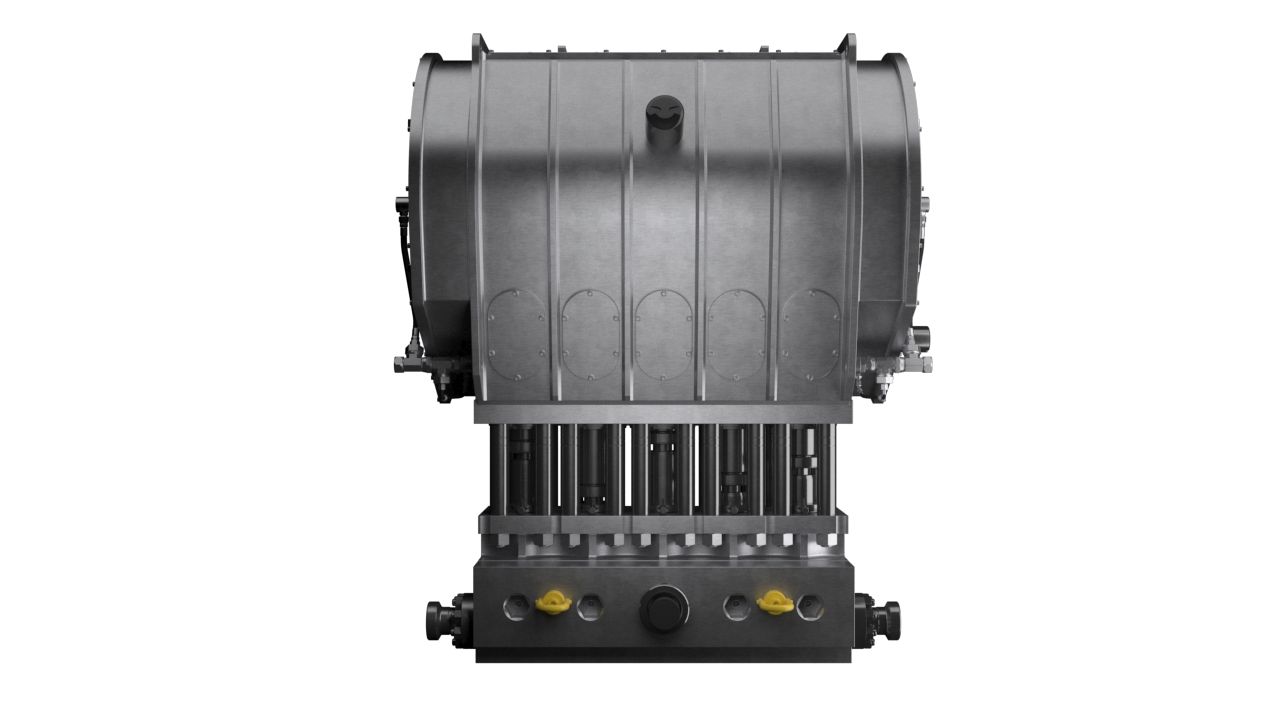

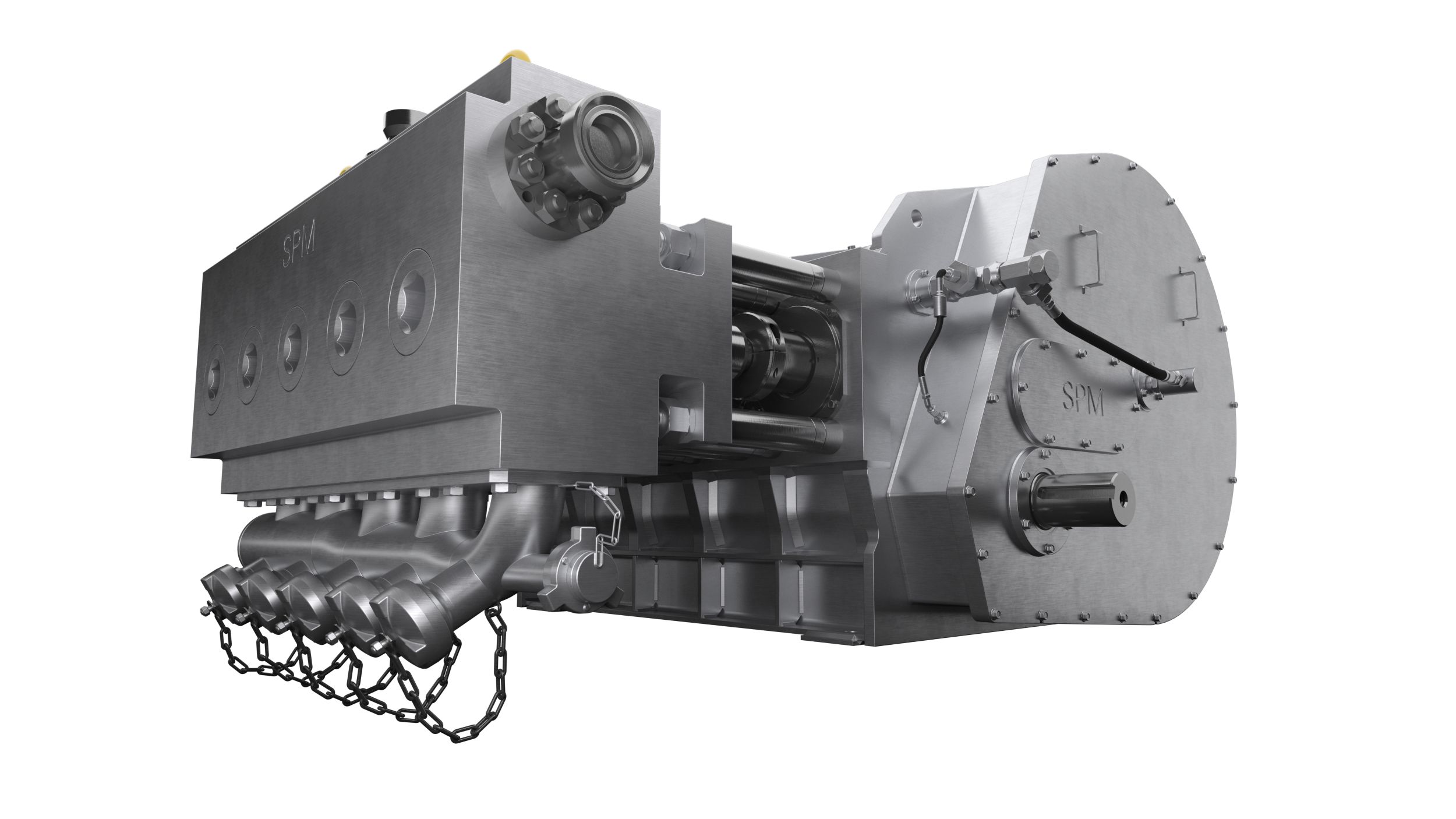

SPM™ EXL Frac Pump
Change model

Overview

Increasingly brutal conditions, longer operating hours, less-frequent service intervals and limited field resources — these are the challenges that inspired SPM Oil & Gas to engineer the SPM™ EXL Frac Pump. With the highest rod-load rating in its class, it systematically addresses the biggest issues confronting operators and manufacturers.

Product Specifications for SPM™ EXL Frac Pump

Horse Power	2,500 2,500
Rod Load	238,000 lb 107,954.984 kg
Weight	17,385 lb 7,886 kg
Stroke Length	8 in 203.2 mm
Length	86.5 in 2,197 mm
Width	79.5 in 2,019 mm
Height	45 in 1,143 mm

Product Specifications for SPM™ EXL Frac Pump

Download Print

Horse Power	2,500 2,500
Rod Load	238,000 lb 107,954.984 kg
Weight	17,385 lb 7,886 kg
Stroke Length	8 in 203.2 mm
Length	86.5 in 2,197 mm
Width	79.5 in 2,019 mm
Height	45 in 1,143 mm
