Well Service Pumps SPM™ QEM 3000 Continuous Duty Frac Pump

Key Specs

Horse Power: 3,000; 3,000

Rod Load: 275000 lb; 124737.902 kg

Weight: 25775 lb; 11691 kg

SPM™ QEM 3000 Continuous Duty Frac Pump
Change model

Overview

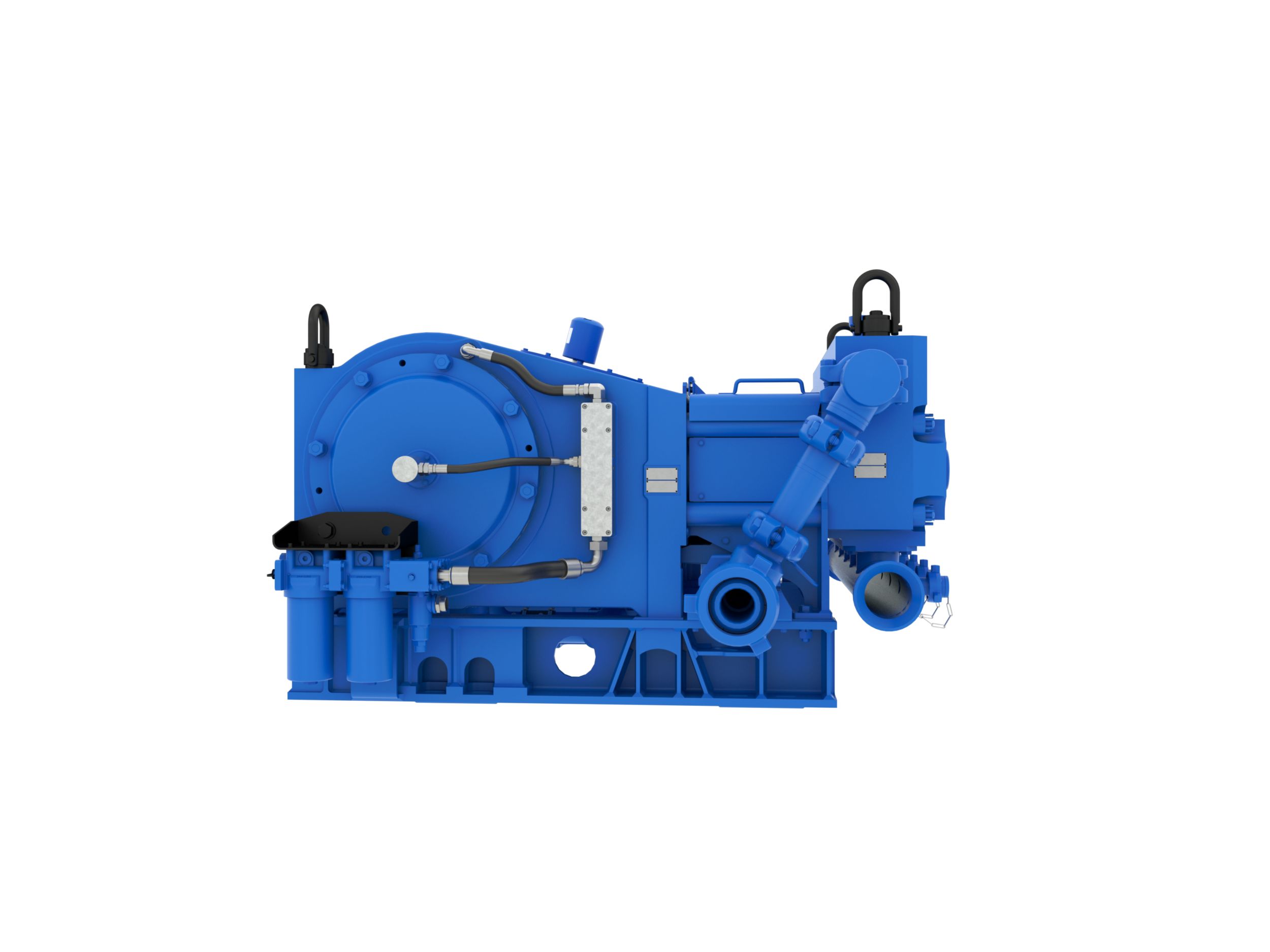

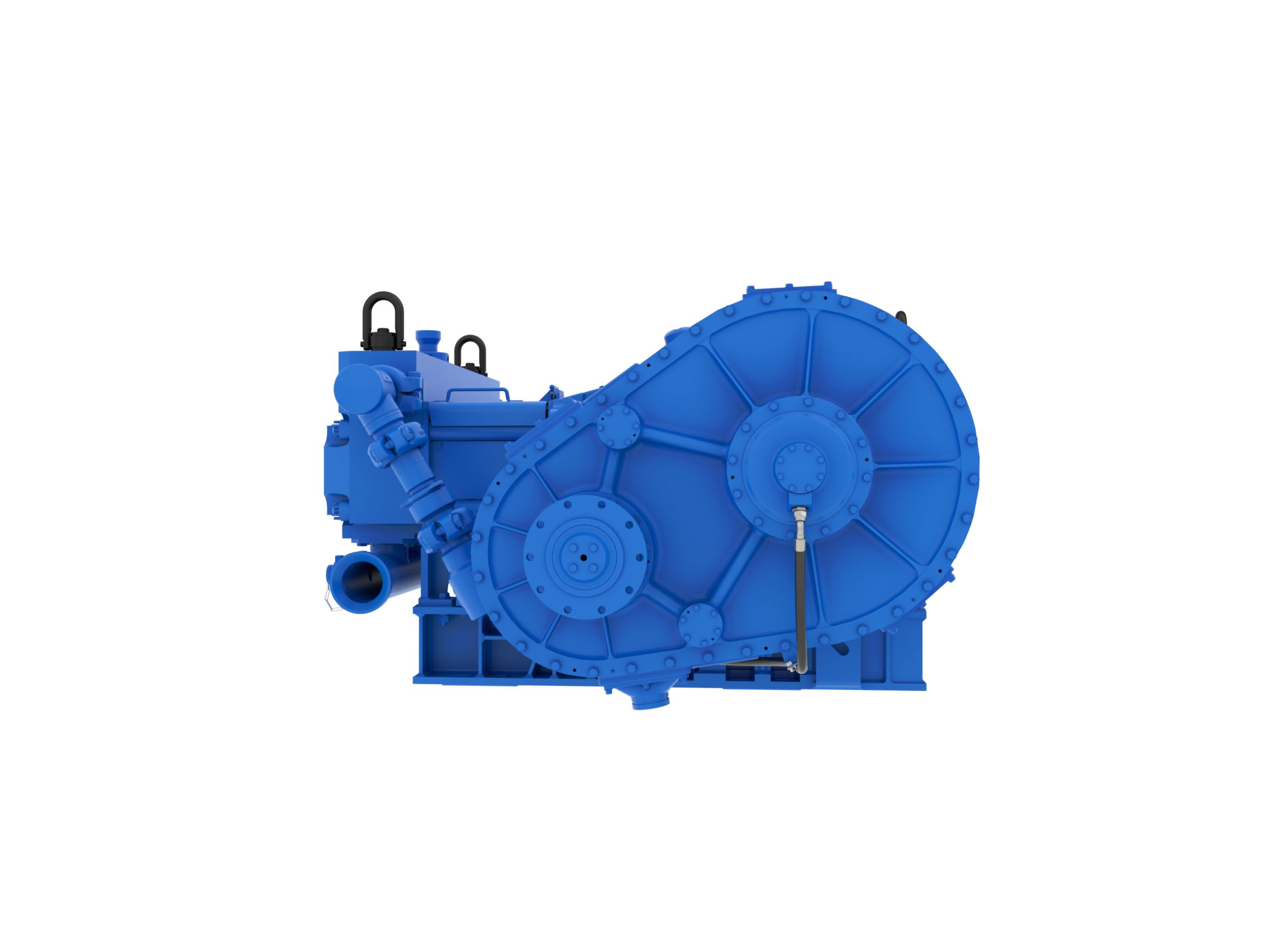

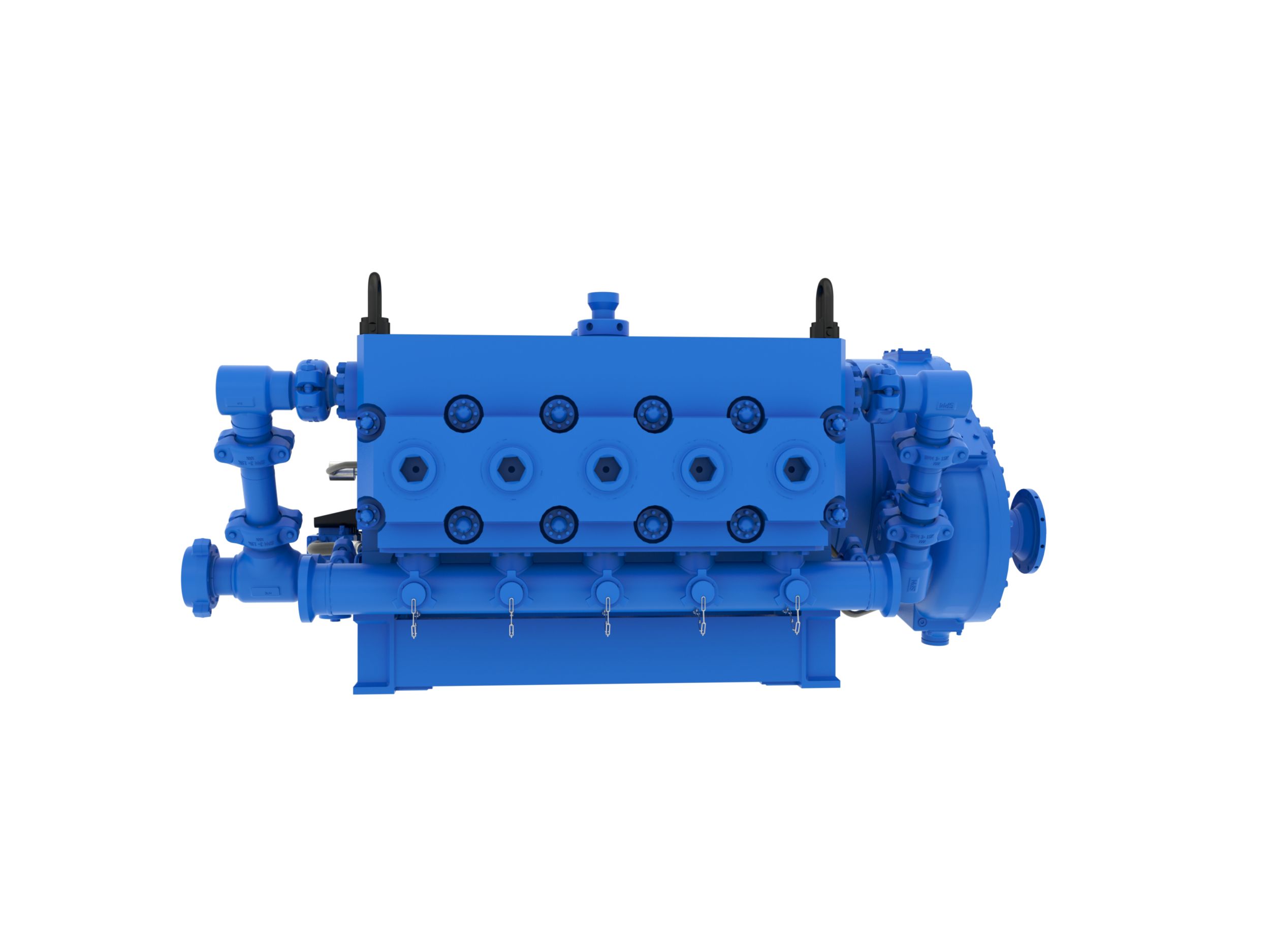

SPM QEM 3000 Continuous Duty Frac Pump

Longer horizontals, higher pressures, and unrelenting environments have pushed most frac pumps past their capabilities. More than ever, operators need a pump built to handle the demands of continuous-duty operations. That means running at full rod load — not just occasionally, but all the time, maximizing the amount of available horsepower on site. The SPM™ QEM 3000 is the industry’s first high-horsepower frac pump built for continuous duty at 275,000 lbf rod load — validated at SPM Oil & Gas' state-of-the-art R&D facility in Fort Worth and through harsh field trials. Engineered by SPM Oil & Gas from the ground up, it specifically addresses the shortcomings that lead to premature pump failure.

Product Specifications for SPM™ QEM 3000 Continuous Duty Frac Pump

Horse Power	3,000 3,000
Rod Load	275000 lb 124737.902 kg
Weight	25775 lb 11691 kg
Stroke Length	8 in 203.2 mm
Length	87 in 2210 mm
Width	116 in 2946 mm
Height	54 in 1372 mm

Product Specifications for SPM™ QEM 3000 Continuous Duty Frac Pump

Download Print

Horse Power	3,000 3,000
Rod Load	275000 lb 124737.902 kg
Weight	25775 lb 11691 kg
Stroke Length	8 in 203.2 mm
Length	87 in 2210 mm
Width	116 in 2946 mm
Height	54 in 1372 mm
