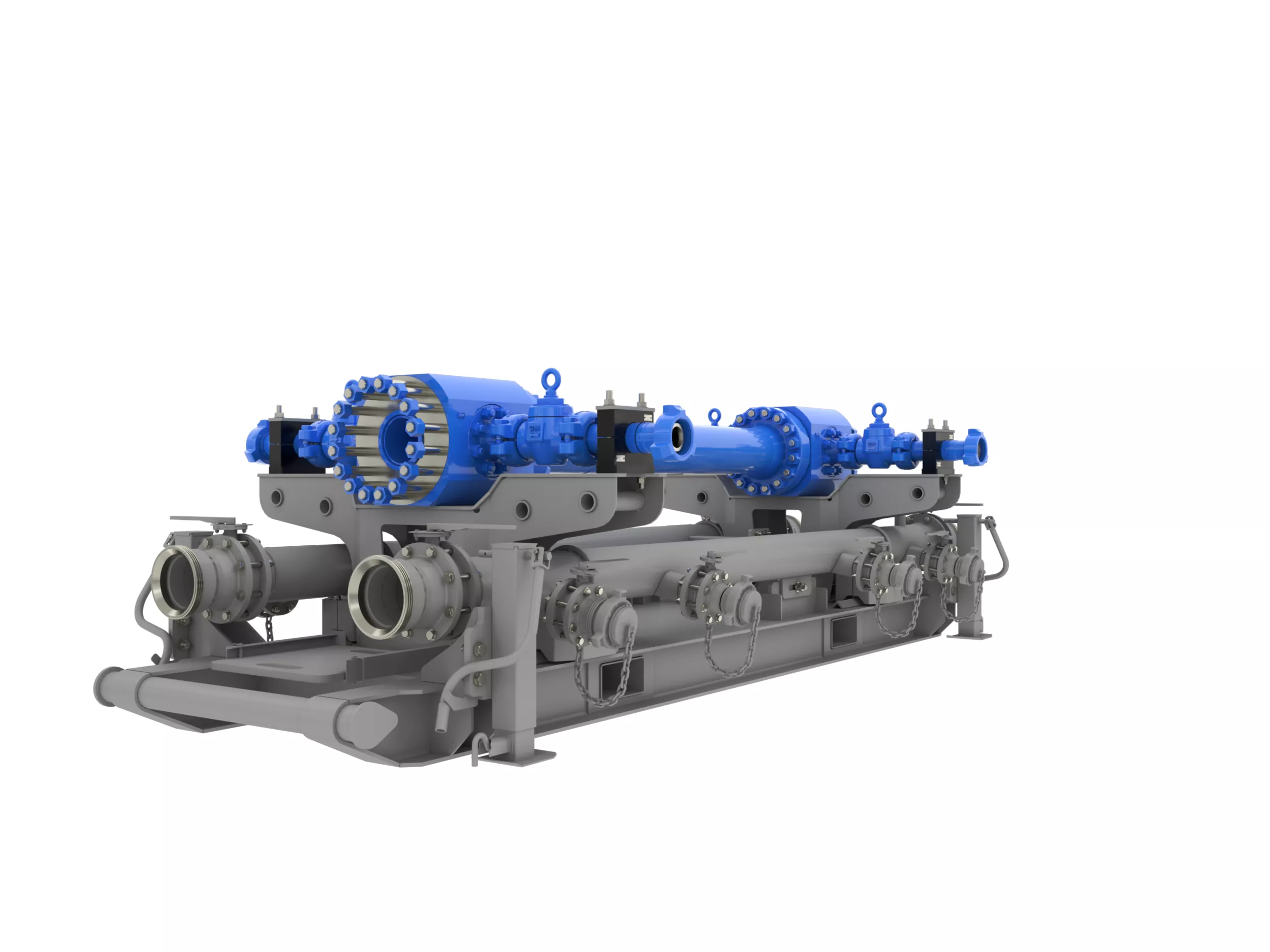

SPM™ Large Bore Missile

SPM™ Large Bore Missile Flow Control

Key Specs

Maximum Operating Temperature: 350 °F; 176 °C

SPM™ Large Bore Missile

SPM™ Large Bore Missile
Change model

Overview

Rig Up Faster With Fewer Leak Paths

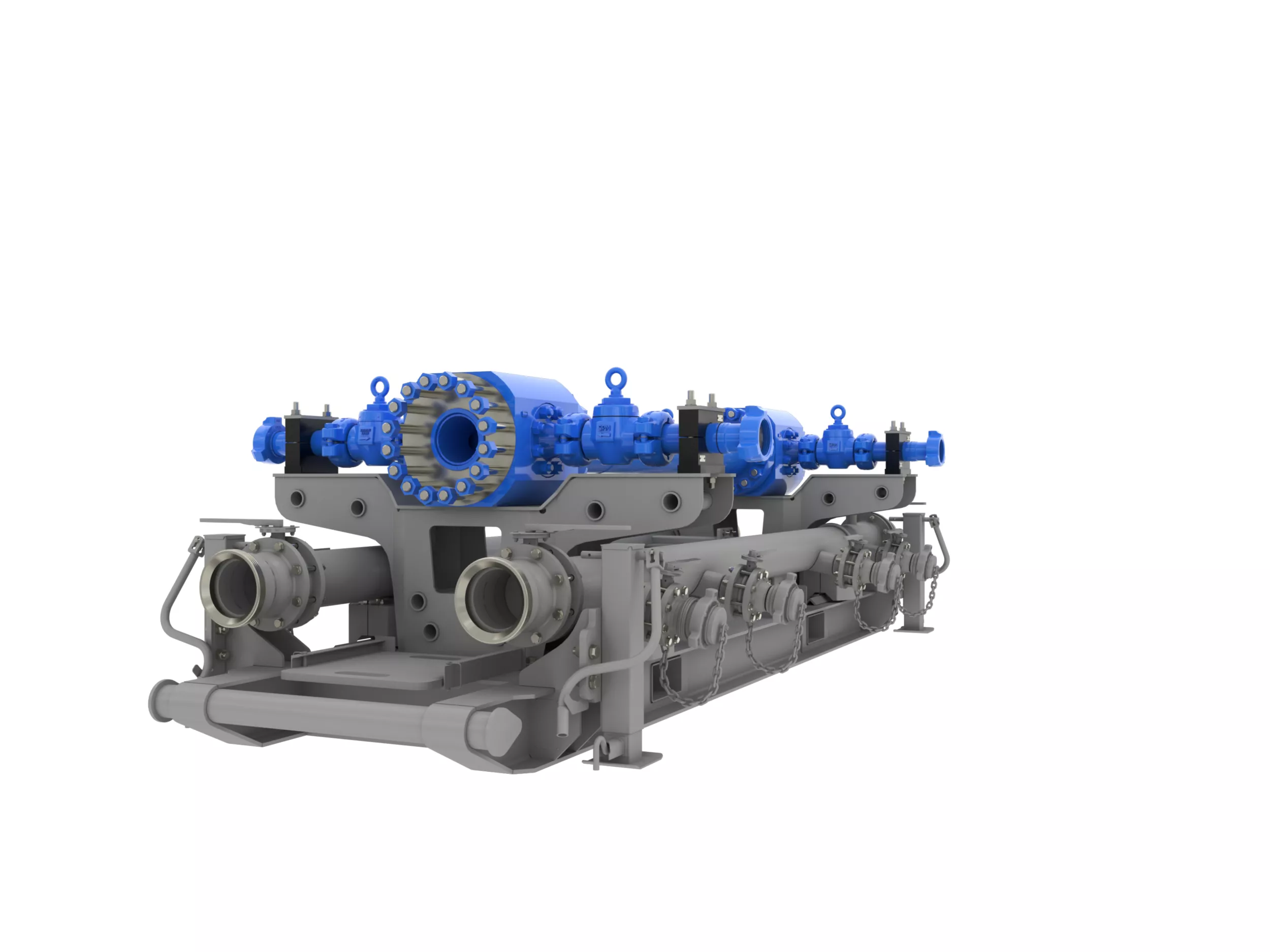

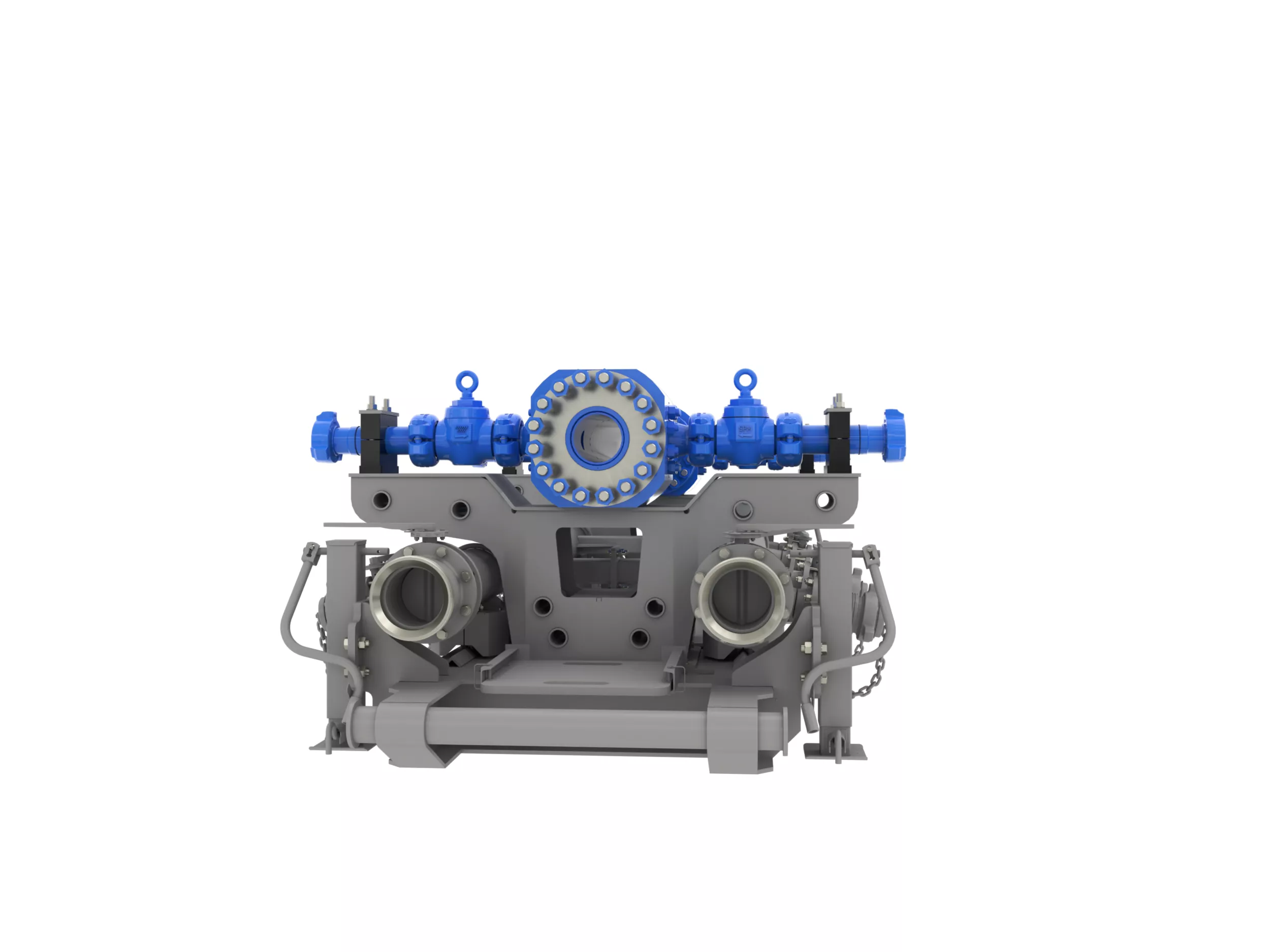

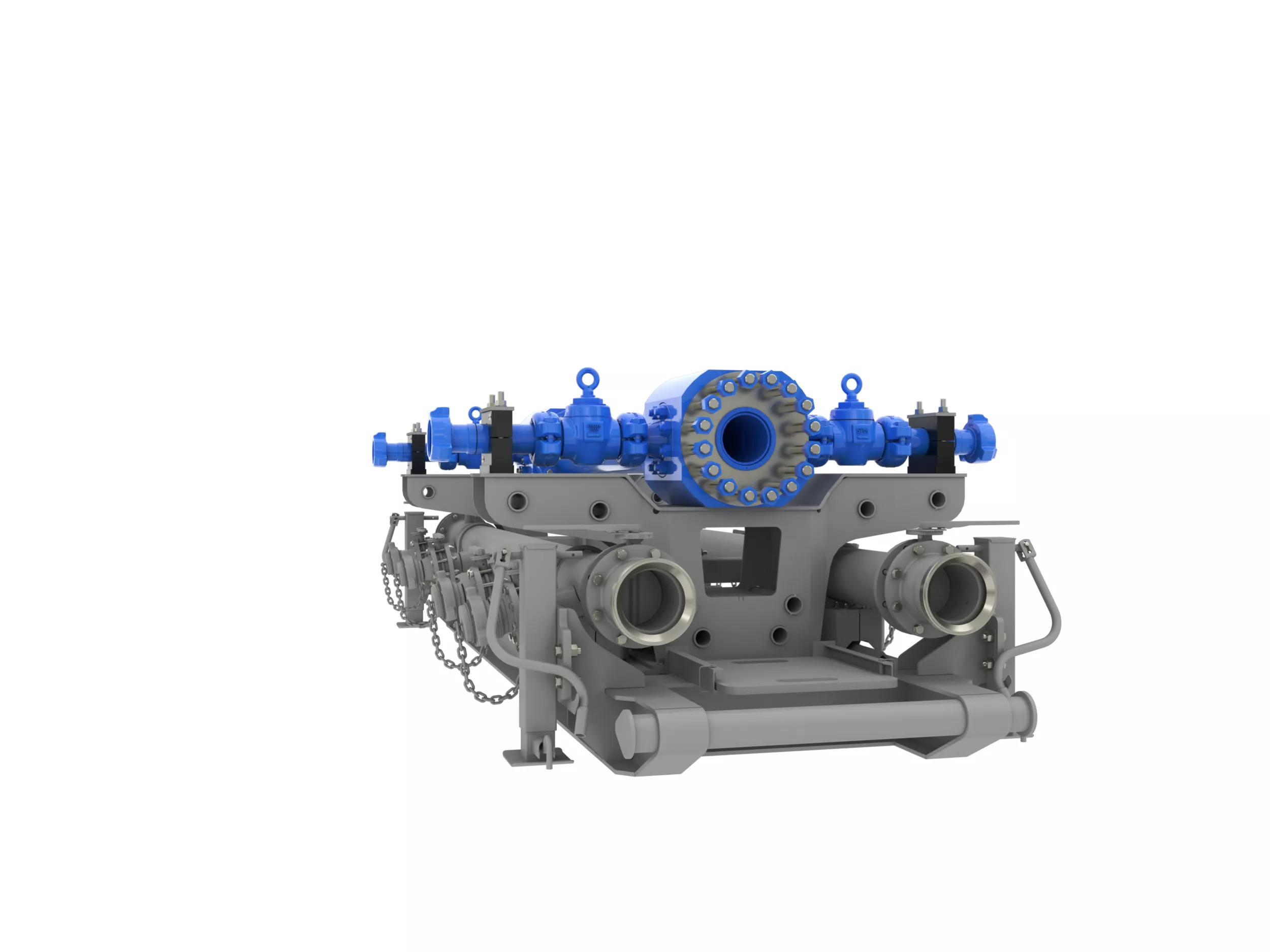

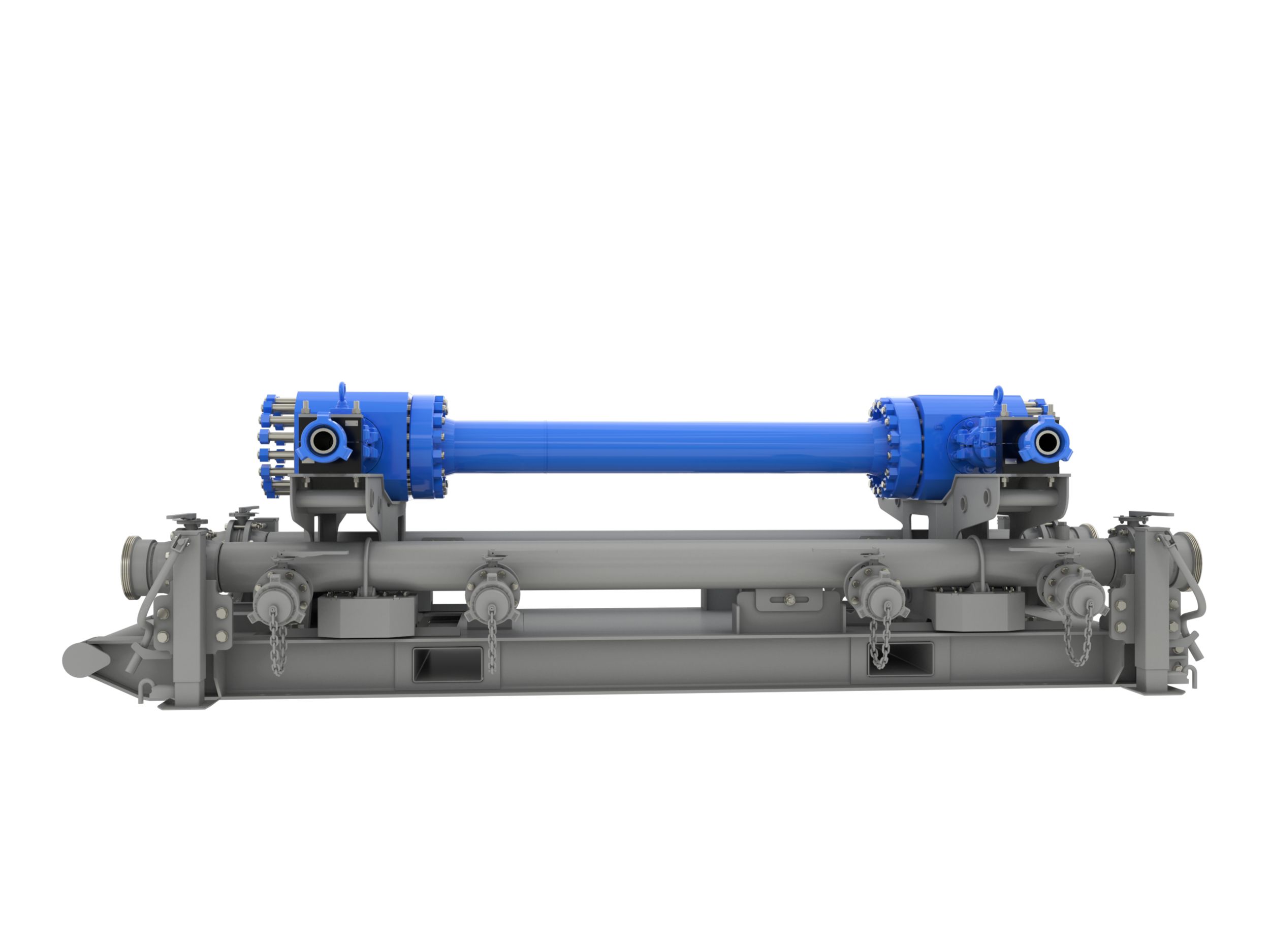

SPM™ Large Bore is a modular, skidded flow iron system designed to simplify high-rate fracturing operations with fewer components, faster rig-up and fewer potential leak paths. Featuring a 7-1/16-inch, 15,000-psi main line capable of delivering up to 123 bpm, the system helps crews improve site efficiency while supporting flexible layouts for simulfrac, continuous pumping and non-standard pad configurations.

Benefits

Faster Rig Up Fewer Connections

Built for High Rate Frac Operations

Flexible Layouts for Complex Pads

Features At A Glance

Displaying 1-6 of 6

7 Inch Main Line

7 Inch Main Line

7-1/16-inch main lines help move high frac volumes through a simplified flow path, supporting high-rate operations with fewer components on location.

Modular Skid Design

Modular Skid Design

Modular skidded manifolds help simplify rig-up and improve site organization, giving crews a scalable system that can adapt to different pad layouts.

FEA Validated Supports

FEA Validated Supports

FEA-validated support structures help manage vibration, side loading and cyclic stress, supporting durability in demanding frac site conditions.

Weld Free Construction

Weld Free Construction

Integral spools and forged block construction create a weld-free design that helps reduce potential failure points in the high-pressure flow path.

4 Station Layouts

4 Station Layouts

Modular 4-station skids can be scaled or arranged for flexible site configurations, including complex pads, simulfrac and continuous pumping operations.

High Pressure Rating

High Pressure Rating

15,000-psi working pressure and 22,500-psi test pressure support demanding high-pressure frac applications.

7-1/16-inch main lines help move high frac volumes through a simplified flow path, supporting high-rate operations with fewer components on location.

Modular skidded manifolds help simplify rig-up and improve site organization, giving crews a scalable system that can adapt to different pad layouts.

FEA-validated support structures help manage vibration, side loading and cyclic stress, supporting durability in demanding frac site conditions.

Integral spools and forged block construction create a weld-free design that helps reduce potential failure points in the high-pressure flow path.

Modular 4-station skids can be scaled or arranged for flexible site configurations, including complex pads, simulfrac and continuous pumping operations.

15,000-psi working pressure and 22,500-psi test pressure support demanding high-pressure frac applications.

Product Specifications for SPM™ Large Bore Missile

Download Print

Maximum Operating Temperature

350 °F 176 °C

See how SPM™ Large Bore Missile compares against frequently compared products.
